High availability units

Out of stock until May 19th

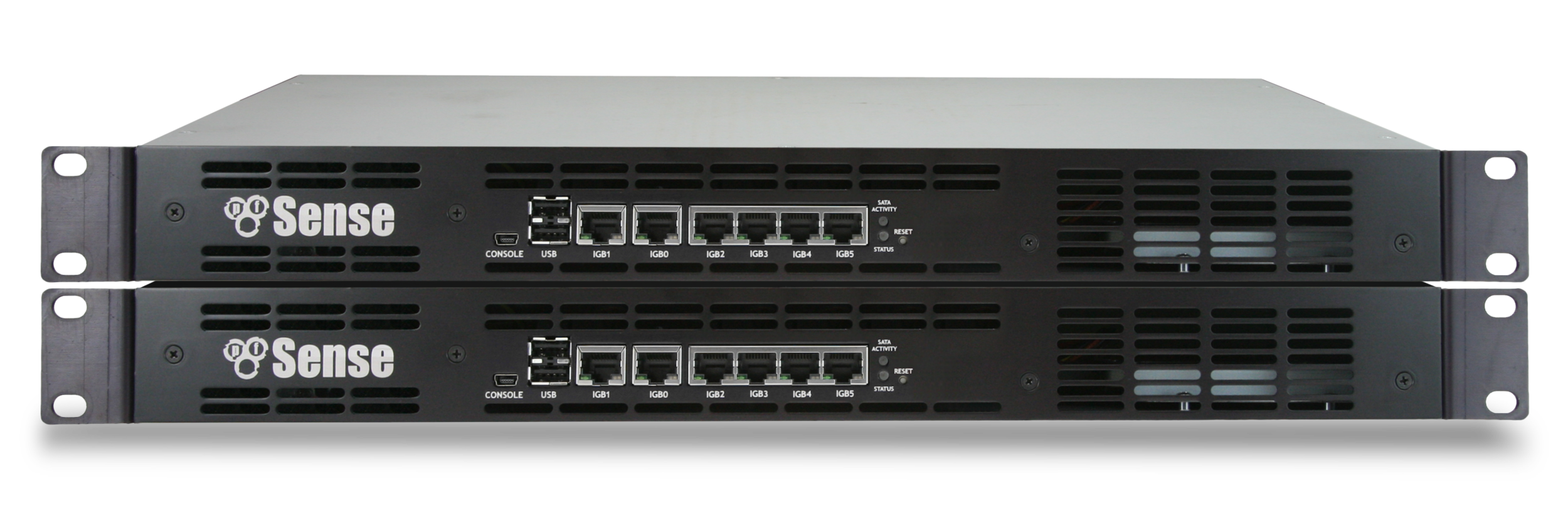

DUAL SG-4860-1U
CONFIGURABLE FOR REDUNDANT HIGH AVAILABILITY AUTO-FAILOVER WITH PFSENSE

This bundle has two SG-4860-1U rackmount systems, a special step-by-step Guide for implementing a redundant high availability system using pfSense, and technical support.

The SG-4860-1U system is a state of the art pfSense® Security Gateway appliance, featuring the Quad Core Intel® Atom™ C2558 2.4 GHz, with AES-NI and Intel QuickAssist acceleration to support a high level of I/O throughput and optimal performance per watt.  This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.

Built with performance, versatility, and low total cost of ownership in mind, pfSense systems meet the growing needs of organizations of all sizes.

KEY FEATURES:

LOW TOTAL COST OF OWNERSHIP

  • No artifical limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power requirements to help save you money.
  • No moving parts to wear out. This system is designed for a long deployment lifetime.

GROWS WITH YOU

  • From firewall to Unified Threat Management, get all the security features you need to protect your network.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.1
  • Maximum Active Connections: 8,000,000

EASY GUI MANAGEMENT

  • Manage pfSense settings through our web-based GUI.
  • No fumbling with a command line interface or typing arcane commands.

SECURE REMOTE ACCESS

  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.

BEST FOR:

  • Customers seeking a solid solution for redundant, auto-failover solutions for routing / firewall / IPS / etc.
  • Small to Medium Sized Branch Office with heavy loads
  • Anyone with High-Speed Gigabit Connections
  • Many VPN Connections

SOFTWARE FEATURES:

pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, PPTP
  • Dynamic DNS client
  • DHCP Server and Relay functions
  • PPPoE Server
  • Reporting and monitoring features with real time information
  • Learn more about the features of pfsense

HARDWARE SPECIFICATION (PER SYSTEM):

CPUIntel "Rangeley" Atom C2558 2.4 Ghz with Intel QuickAssist

CPU CoresQuad Core

Networking6x Gigabit Ethernet Ports total:
   4x Intel I350 ( SoC Intel I354 Quad GbE on-die MACs )
   2x Intel I211

Storage32GB eMMC Flash on board*

Memory8GB DDR3L

Expansion1x mSATA, 2x miniPCIe

Console PortMini USB

USB Ports2x 2.0 ports

 LEDPower/Status/SATA Activity

Enclosure1.75" x 19" x 8.5" 1U Rack Mount

Form Factor1U

CoolingFansink + optional chassis fan

 PowerInternal AC/DC 100-240V, 50-60Hz, 12V
AC Inlet: IEC320-C14 (3 PIN)
Power Cord: NEMA 5-15P to IEC320-C13

Environmental0C to 50C

Power Consumption8W (idle)

CertificationsFCC, CE, RoHS, UL

ADDITIONAL INFORMATION:

  • Includes pfSense CARP Setup Guide for Automatic Failover
  • Quick Start Guide and other Manuals.
  • Access to the online version of The Official pfSense Book. (upon support registration)
  • Ships with the latest version of pfSense.
  • Not PoE Compatible.
  • Ships with US style 3 prong power cord. Easily changed to non-US style by purchasing a IEC320-C13 (3 PIN) compatible power cord (visual example).

WARRANTY AND SUPPORT INFORMATION:

  • pfSense Incident Based Support via email, chat or phone. Includes four complimentary incidents.
  • Standard 30 day return policy.
  • One year manufacturer's warranty.
  • All specifications subject to change without notice.

1 Free packages.

2 Future pfSense distributions will have support for QuickAssist. AES-NI support is included.

 * Units produced prior to 1 December 2016 have 4 GB eMMC flash. Units produced after 1 December 2016 have 32GB eMMC flash.



DUAL SG-8860-1U
CONFIGURABLE FOR REDUNDANT HIGH AVAILABILITY AUTO-FAILOVER WITH PFSENSE


This bundle has two SG-8860-1U rackmount systems, a special step-by-step Guide for implementing a redundant high availability system using pfSense, and technical support.

The SG-8860 1U 19" rack mount system is a state of the art pfSense® Security Gateway appliance, featuring the 8 Core Intel® Atom™ C2758 2.4 GHz, with AES-NI and Intel QuickAssist acceleration to support a high level of I/O throughput and optimal performance per watt.  This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.

Built with performance, versatility, and low total cost of ownership in mind, pfSense systems meet the growing needs of organizations of all sizes.

KEY FEATURES:

LOW TOTAL COST OF OWNERSHIP

  • No artifical limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power requirements to help save you money.
  • This system is designed for a long deployment lifetime.

GROWS WITH YOU

  • From firewall to Unified Threat Management, get all the security features you need to protect your network.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.1
  • Maximum Active Connections: 8,000,000

EASY GUI MANAGEMENT

  • Manage pfSense settings through our web-based GUI.
  • No fumbling with a command line interface or typing arcane commands.

SECURE REMOTE ACCESS

  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.

BEST FOR:

  • Customers seeking a solid solution for redundant, auto-failover solutions for routing / firewall / IPS / etc.
  • Medium to Large Sized Networks with 19" 1U rack mount cabinets.
  • Small to Large Sized Branch Offices with heavy loads
  • Anyone with High-Speed Gigabit Connections
  • Many VPN Connections

SOFTWARE FEATURES:

pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, PPTP
  • Dynamic DNS client
  • DHCP Server and Relay functions
  • PPPoE Server
  • Reporting and monitoring features with real time information
  • Learn more about the features of pfsense

HARDWARE SPECIFICATION (PER SYSTEM):

CPUIntel "Rangeley" Atom C2758 2.4 Ghz with Intel QuickAssist

CPU CoresEight Cores

Networking6x Gigabit Ethernet Ports total:
   4x Intel I350 ( SoC Intel I354 Quad GbE on-die MACs )
   2x Intel I211

Storage64GB eMMC Flash on board

Memory8GB DDR3L

Expansion1x mSATA, 2x miniPCIe

Console PortMini USB

USB Ports2x 2.0 ports

 LEDPower/Status/SATA Activity

Enclosure

1.75" x 19" x 8.5" 1U Rack Mount

Form Factor1U

CoolingFansink + optional chassis fan

 PowerInternal AC/DC 100-240V, 50-60Hz, 12V
AC Inlet: IEC320-C14 (3 PIN)
Power Cord: NEMA 5-15P to IEC320-C13

Environmental0C to 60C

Power Consumption9W (idle)

CertificationsFCC, CE, RoHS, UL

ADDITIONAL INFORMATION:

  • Includes pfSense CARP Setup Guide for Automatic Failover
  • Quick Start Guide and other Manuals.
  • Access to the online version of The Official pfSense Book. (upon support registration)
  • Ships with the latest version of pfSense.
  • Not PoE Compatible.
  • Ships with US style 3 prong power cord. Easily changed to non-US style by purchasing a IEC320-C13 (3 PIN) compatible power cord (visual example).

WARRANTY AND SUPPORT INFORMATION:

  • pfSense Incident Based Support via email, chat or phone. Includes four complimentary incidents.
  • Standard 30 day return policy.
  • One year manufacturer's warranty.
  • All specifications subject to change without notice.

1 Free packages.

2 Future pfSense distributions will have support for QuickAssist. AES-NI support is included.
